Hardware & Accessories

RAM Cards

RAM Slot Cards

Androda's 7MB RAM Card

https://androda.work/product/macintosh-portable-7-megabyte-ram-card/

This 7MB RAM card is a modern design using PSRAM.

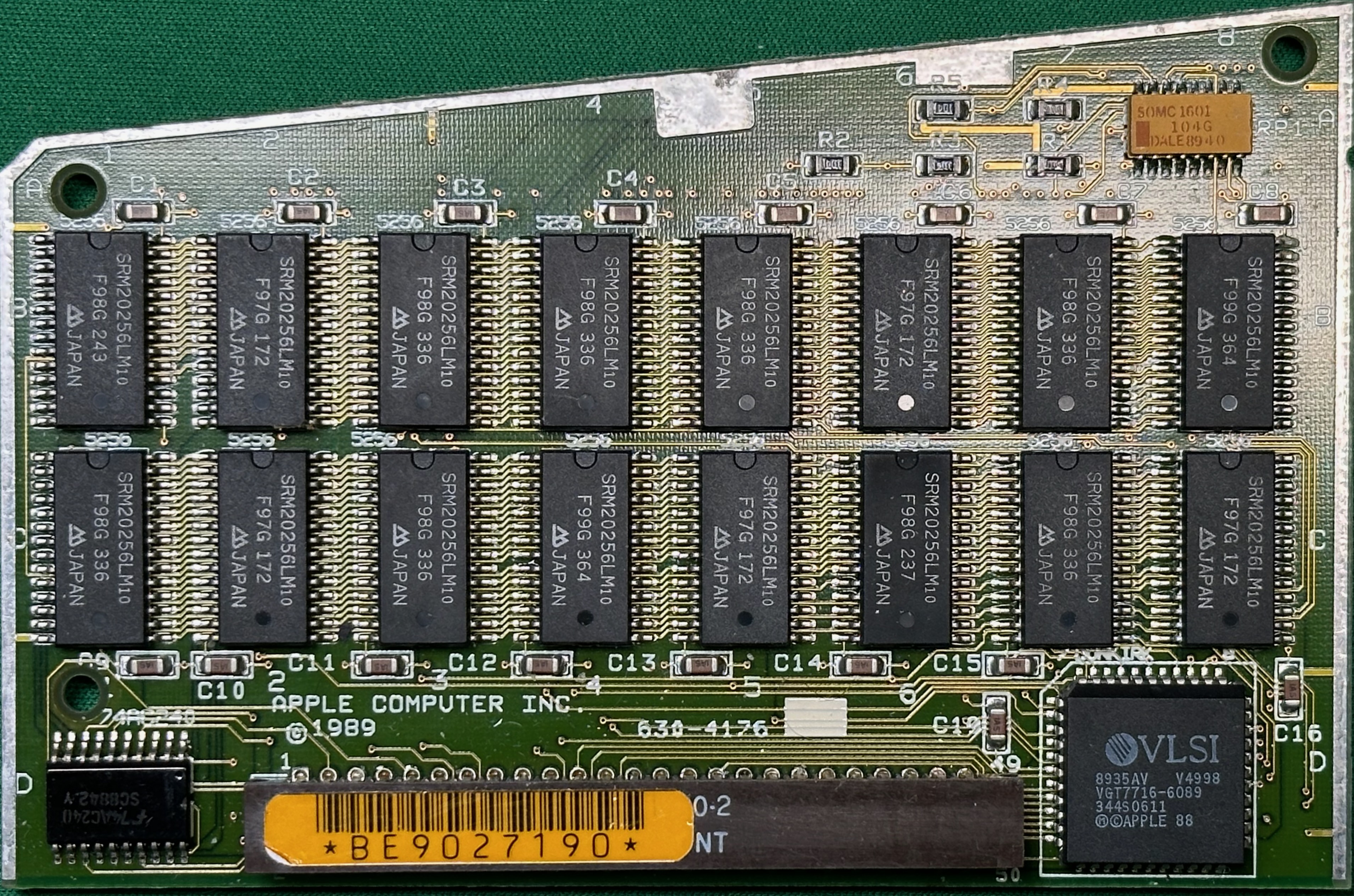

Apple 1MB SRAM 630-4176

Apple PSRAM 1MB/3MB 820-0662-01

This card was most commonly found with the Model M5126 Backlit Macintosh Portable.

The same board is used for both the 1MB and 3MB variants, just with less PSRAM populated.

Applied Engineering MacRam Portable

This card was expandable up to 8MB in size using 1MB SIPP SRAM modules.

Computer Care PacRam

This 4MB card uses DRAM rather than SRAM or PSRAM.

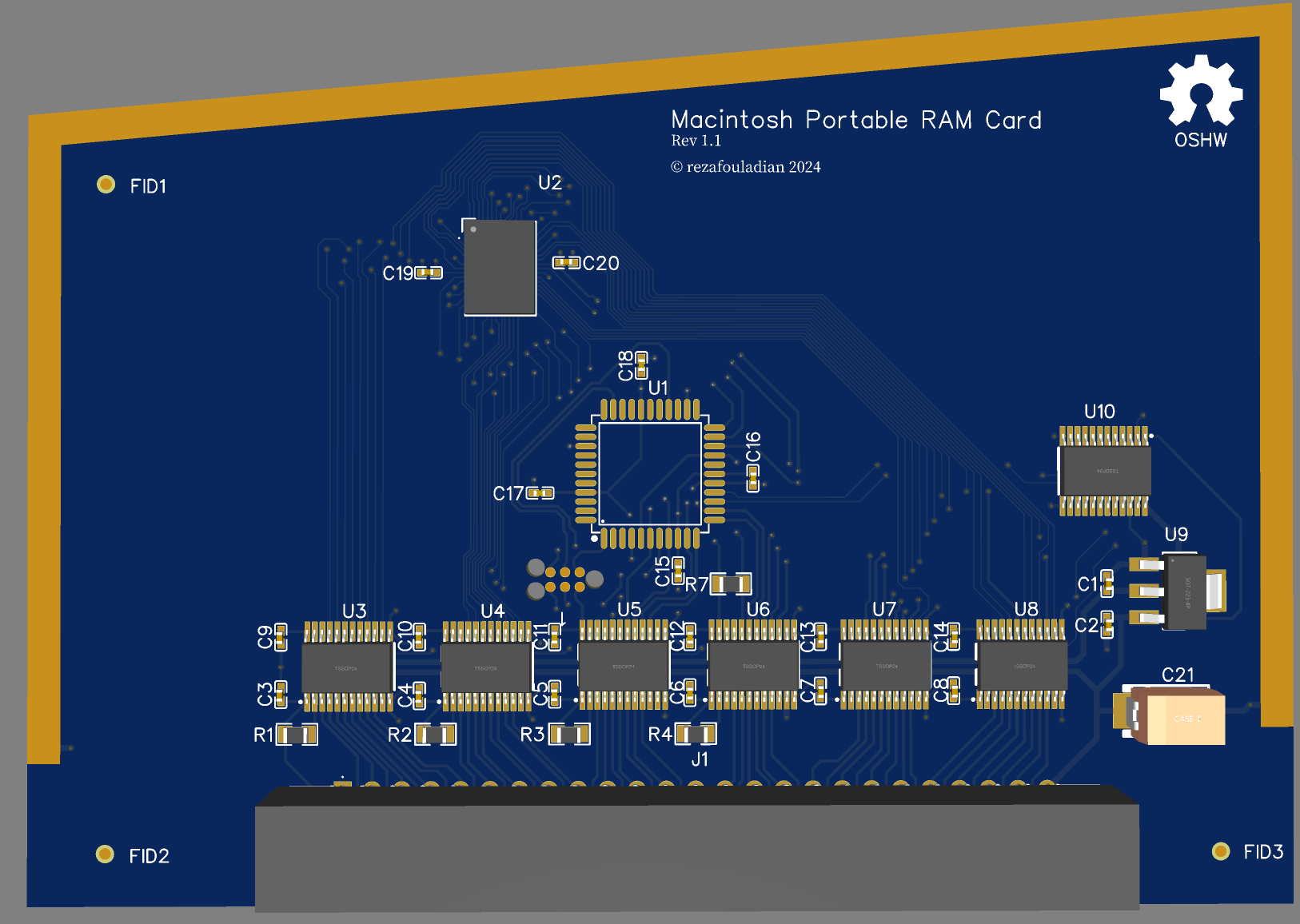

New Portable RAM Card BGA

A newly designed 8MB RAM card.

https://github.com/rezafouladian/PortableRAM-BGA-8MB

MacEffects 8MB RAM Card

https://maceffects.com/products/8mb-memory-upgrade-for-macintosh-portable-m5120-m5126

Kingston 1MB/3MB/4MB

Model: KTA-1000/MP (1MB), KTA-3000/MP or KTA-4000/MP (4MB)

The same board is used for the 1MB, 3MB, and 4MB variants.

Shadow PortaRam

A 1MB RAM card that could be upgraded all the way to 8MB with stacking modules.

PDS RAM Cards

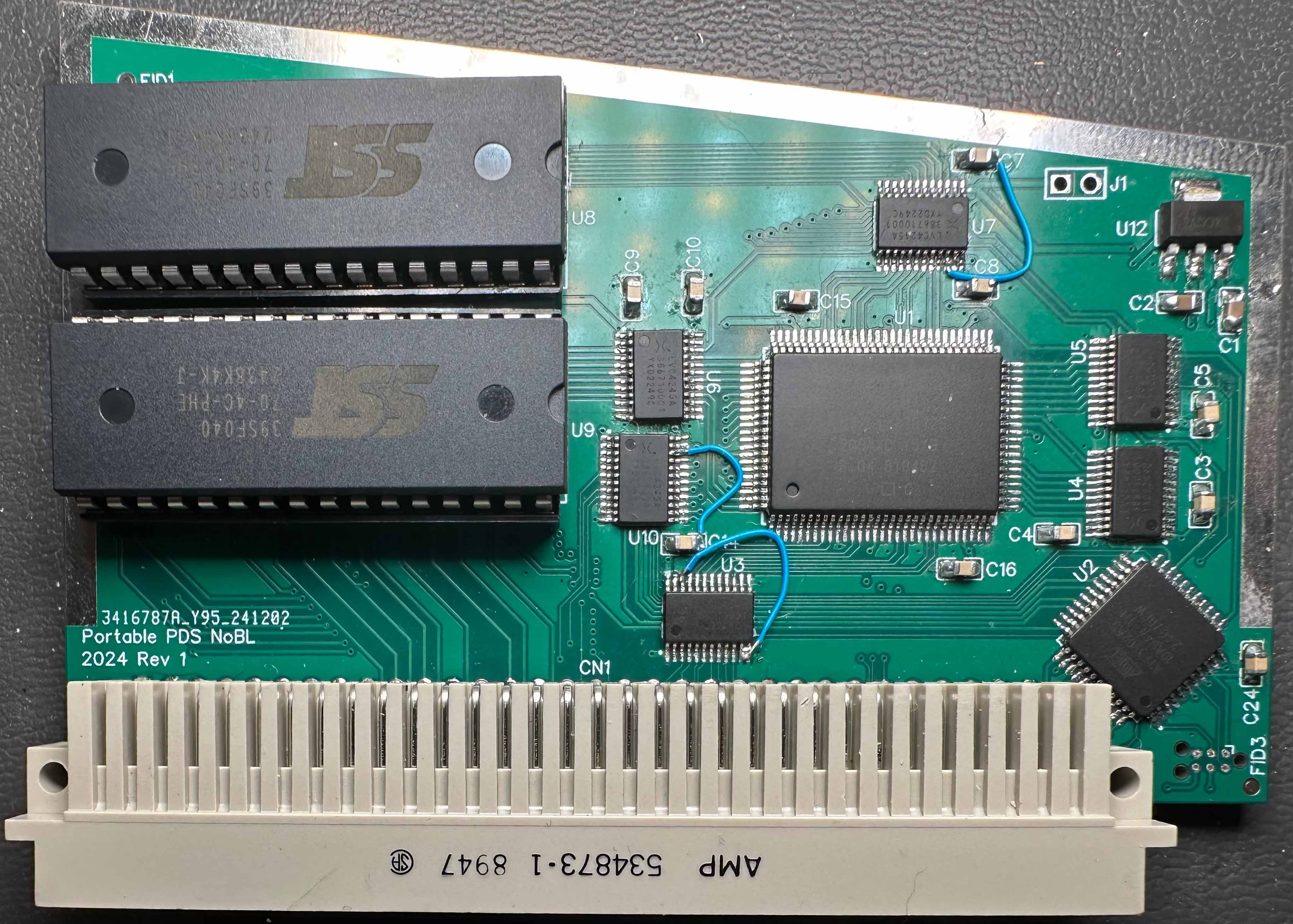

New NoBL PDS Card

A newly designed PDS RAM card with 8MB of Cypress NoBL™ SRAM and space for 1MB of ROM.

The entire 8MB range of RAM runs at zero wait states, system performance is dramatically improved over regular RAM cards.

https://github.com/rezafouladian/PortablePDSNoBL

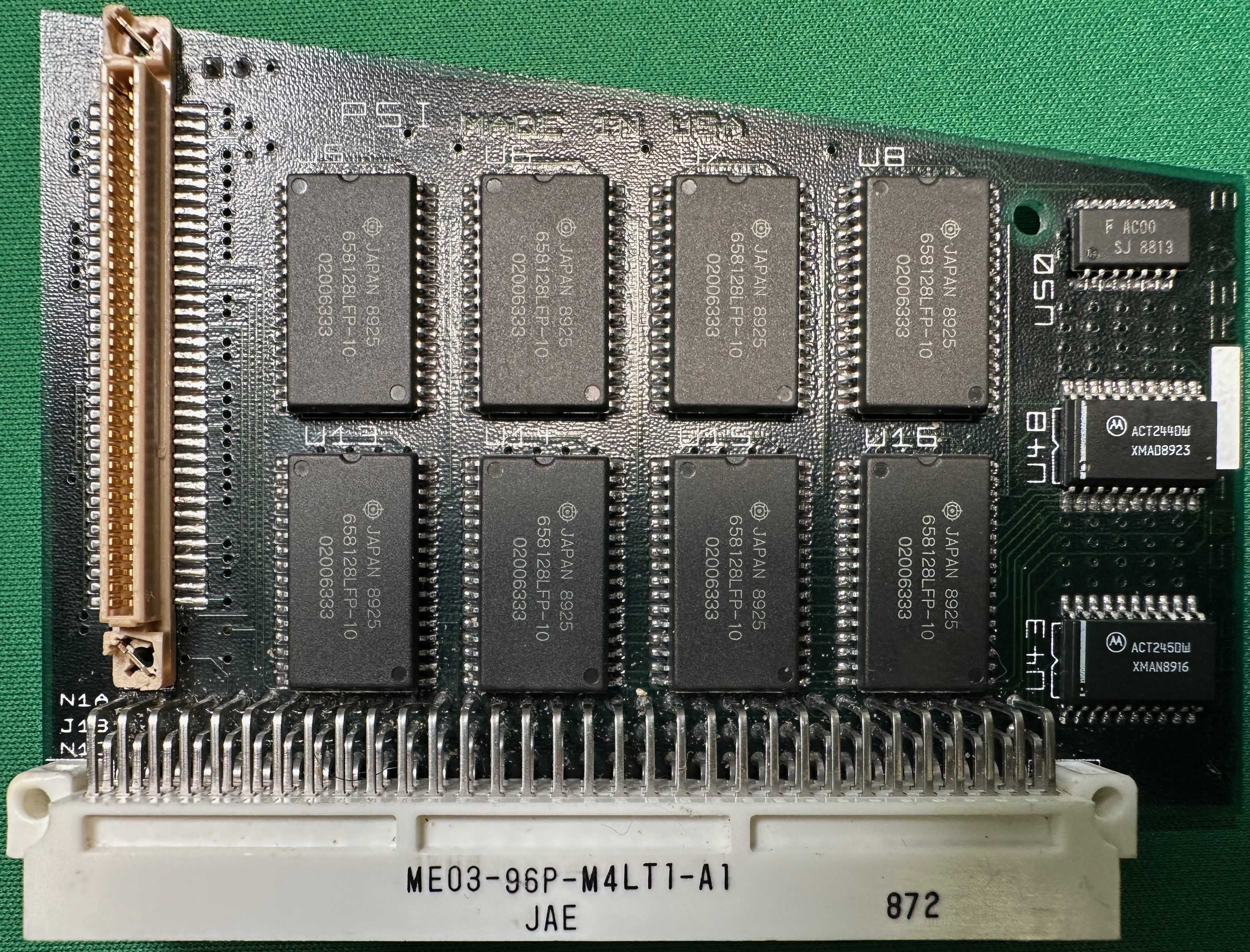

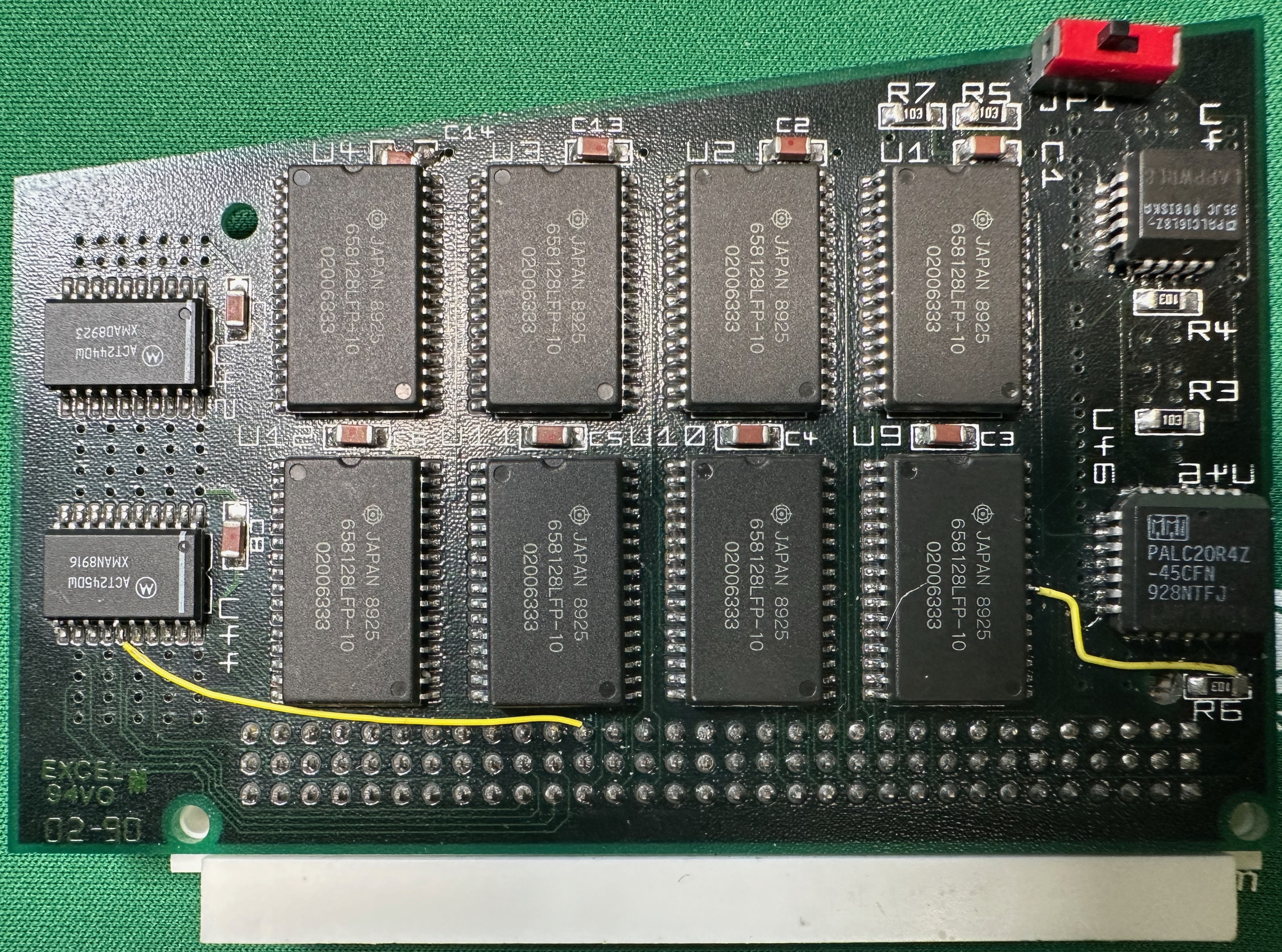

PSI

This card is expandable up to 8MB using stacking add-on boards.

Video Adapters

Androda's Macintosh Portable Video Adapter

Apple Macintosh Portable Video Adapter (Cancelled)

The codename for this adapter or video output capability on the Portable appears to have been "Topanga".

Computer Care VideoMacPac

The VideoMacPac was a video card that went in the PDS slot and allowed a second screen, unlike the regular video output on the Portable that mirrored the internal display.

It appears to be heavily based off the Lapis DisplayServer based on the code.

Also see the clone of this card, VideoMacPacHack.

Generation Systems Portable Publisher

Generation Systems/Generation X Technologies

Sayett Technology DataShow HR/MP

This video adapter was designed to be used with an overhead projector and plugged directly into the Portable's video output.

nView Macintosh Portable Adapter

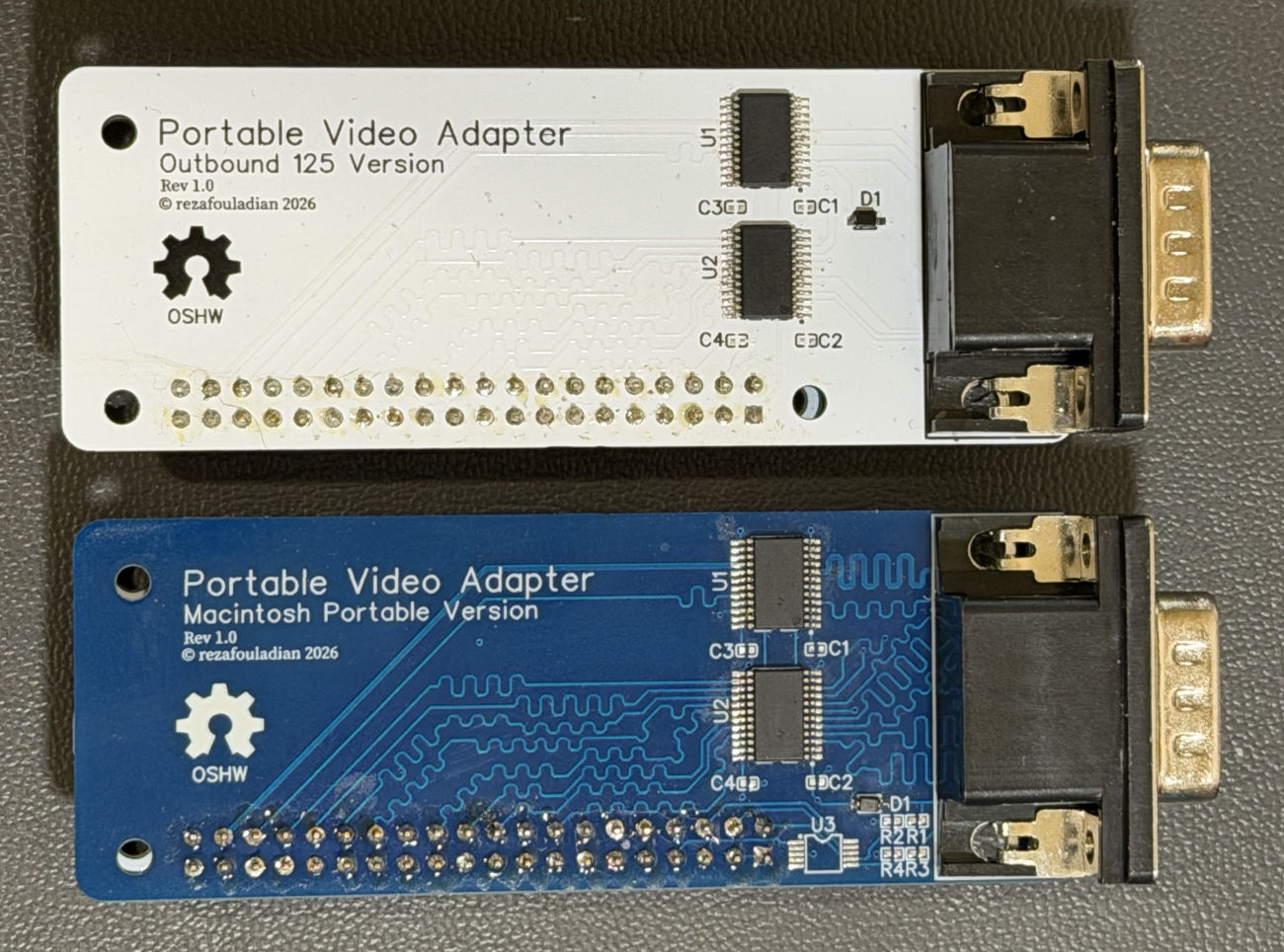

"New Portable Video Adapter"

Coming soon

Storage

MicroNet Pi-40p and Pi-80p

Internal drive replacements for the Macintosh Portable, in 40MB and 80MB sizes.

Modems

Apple Portable Data Modem 2400 630-4175

Apple Portable International Modem

Applied Engineering DataLink/Mac Portable

Doradus 2400/1200 Modem for 3270

Megahertz EasyTalk MNP5

Orchid Technology OrchidFAX LTs

Prometheus Products TravelModem

PSI COMplete FAX/Modem

Xecom NewPort MP 2400

Xecom NewPort MP 2400mnp5

Xecom NewPort MP FAX/Data

Other Hardware

3D Printed Battery Case

A 3D printed battery case designed to fit a 6V LiFePO4 battery.

Androda's Macintosh Portable Battery Eliminator

https://androda.work/product/macintosh-portable-battery-eliminator/

Apple Numpad Module

The number pad module that can be installed instead of the trackball.

Apple Backlight Upgrade

A kit sold by Apple to upgrade a regualar Portable with a backlit display. It included a replacement display along with a card for the ROM slot.

Apple ROM Card AP1234-02

A ROM card used by Apple during early testing of the Portable.

Second Wave ExpanSE Home BaSE

This expansion system allowed the Portable to be "docked" and connected to an external chassis containing two SE PDS slots.

It used a PDS card installed in the Portable to connect the Portable's PDS bus to the expansion chassis.

From BYTE magazine's November 1990 issue:

If you want to use a large-screen monochrome monitor with the Mac Portable, or connect the Portable to a mainframe computer system, you can use Second Wave's ExpanSE Home BaSE, a two-slot Mac SE card chassis.
The chassis serves as a base station for the Mac Portable, housing two standard Mac SE 68000 Processor Direct Slot cards. The Portable sits on top of and connects to the chassis through an included interface card and two cable assemblies.
Price: $995

In the December 1990 issue of MacWorld, a seller listed the price as $895.

Apple Battery Charger

Apple Macintosh Portable Japanese Upgrade Kit

Alternate Name: Apple Macintosh Portable 日本語アップグレードキット

The contents of this kit are unknown. It's possible it may have contained a Japanese Keyboard.
